magnet poetry board

~ case study ~ July 22, 2025

I wanted to build a quiet writing surface where composing words feels physical: thoughts move into shape and save as shareable snapshots.

Simple, intuitive interface like a pocket of physical space inside a screen
Board that remains consistent and reliable while I move words around
Word choices that are open-ended but not overwhelmingly freeing

01 — curating words

Words are individual draggable magnets. In addition to giving the user freedom to insert their own words, I used Allison Parrish's Gutenberg Poetry Corpus to pre-select a set of commonly used words in poetry.

Python script cleaned, filtered, and ranked words, wrote most popular words into a txt file
Selecting popular words ensures essential grammatical functions while allowing expressive terms
Manually screened dataset for appropriateness and resonance

02 — board setup

centered, 3:4, soft noise and depth using layered and blurred animated svg + noise texture.

⇕ tiny code


PoemBoard() {(
  <div style={{position:'relative', aspectRatio:'3/4', overflow:'hidden', borderRadius:12}}>
    <img src="/blog/magnetic-poetry/red-grad-animated.svg"
        style={{position:'absolute', inset:0, filter:'blur(18px)'}} aria-hidden />
    <div style={{
      position:'absolute', inset:0,
      background:"url('/blog/magnetic-poetry/noise.png') repeat 0 0 / 100px 100px",
      mixBlendMode:'screen', opacity:.9
    }}/>
    {children}
  </div>
)}

03 — under-finger drag

measure from magnet’s center → measure size and position in board % → clamp to 0..100.

subtle lifting effect when pressed
word stays centered under finger
consistent size / positions after window resize
mouse and touch feel the same

04 — delete (only on drop)

magnet gets smaller when you drag it downwards, and deletes on drop.

feedback ≠ action (scaling is only a hint)
'trash box' doesn't interfere with user experience
*however, lack of clear visual cue may confuse users who want to delete an item*

05 — export that stays crisp

DOM snapshot via html2canvas; many DOM elements could not be captured directly so I reconstructed the entire board proportionally on a hidden HiDPI canvas.

Background pass: draw gradient | webcam feed | white background, apply blur
Noise + Magnets pass: screen-blend noise texture, measureText for box width, white fill + hairline stroke + DPR-scaled shadow.
Capture guard (ref) prevents duplicate downloads.

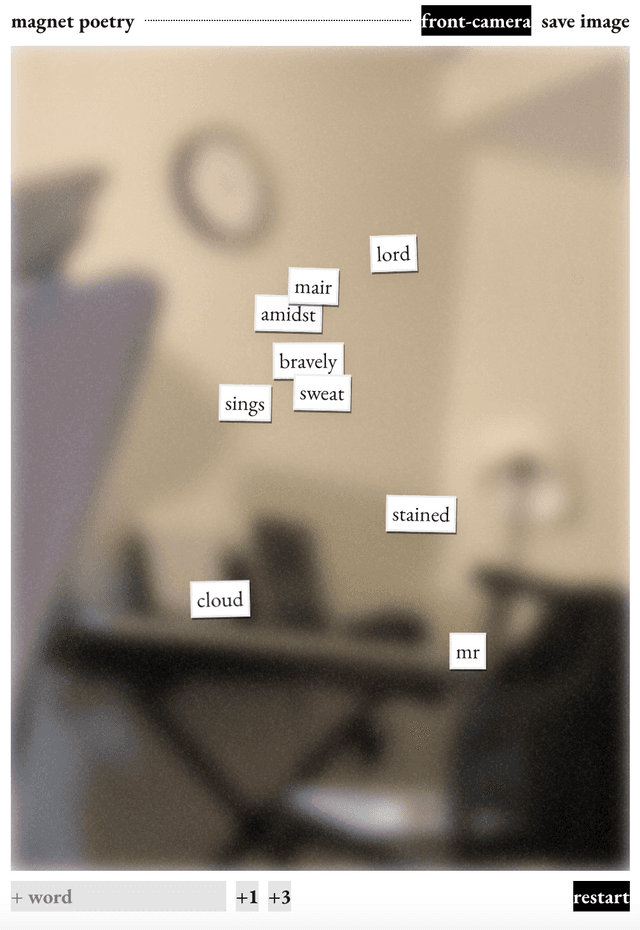

screenshot

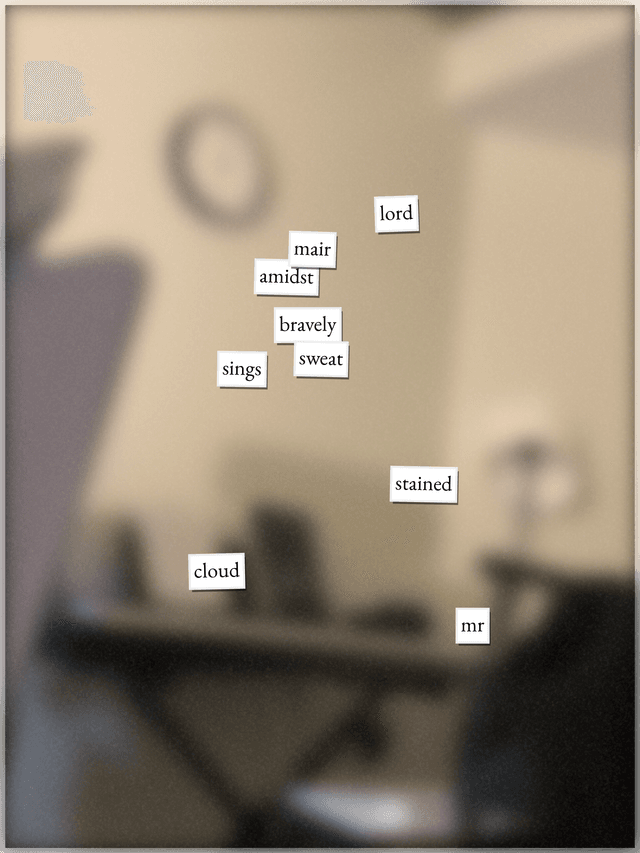

downloaded image

⇕ tiny code

// inside useEffect of <PoemSnapshot/>
// HiDPI sizing
canvas.width = width * dpr;
canvas.height = height * dpr;
canvas.style.width = width + 'px';
canvas.style.height = height + 'px';
ctx.scale(dpr, dpr);

// draw background (image | webcam | white)
function drawCoverImage(
  source: HTMLImageElement | HTMLVideoElement | HTMLCanvasElement,
  mirror = false
) {
  const rawW = source instanceof HTMLVideoElement ? source.videoWidth  : source.width;
  const rawH = source instanceof HTMLVideoElement ? source.videoHeight : source.height;
  const imgR = rawW / rawH, canR = width / height;

  let sx = 0, sy = 0, sw = rawW, sh = rawH;
  if (imgR > canR) { sw = sh * canR; sx = (rawW - sw) / 2; }
  else { sh = sw / canR; sy = (rawH - sh) / 2; }

  const off = document.createElement('canvas');
  off.width = width; off.height = height;
  const octx = off.getContext('2d')!;

  if (mirror) { octx.translate(width, 0); octx.scale(-1, 1); }
  octx.drawImage(source, sx, sy, sw, sh, 0, 0, width, height);

  ctx.save();
  ctx.filter = 'blur(' + 18 * dpr + 'px)';
  ctx.drawImage(off, 0, 0);
  ctx.restore();
}

function drawNoise() {
  const img = new Image();
  img.onload = () => {
    const tile = document.createElement('canvas');
    tile.width = img.width * 2; tile.height = img.height * 2;
    tile.getContext('2d')!.drawImage(img, 0, 0, tile.width, tile.height);
    const pat = ctx.createPattern(tile, 'repeat')!;
    ctx.save(); ctx.globalCompositeOperation = 'screen';
    ctx.fillStyle = pat; ctx.fillRect(0, 0, width, height);
    ctx.restore();
    drawWords();
  };
  img.src = '/noise.png';
}

function drawWords() {
  const fontSize = Math.min(width * 0.03, height * 0.0225) * 1.1;
  const padX = fontSize * 0.2, padY = fontSize * 0.3;

  ctx.font = fontSize + 'px "EB Garamond", serif';
  ctx.textAlign = 'center'; ctx.textBaseline = 'middle';

  for (const w of words) {
    const x = (w.xPercent / 100) * width;
    const y = (w.yPercent / 100) * height;

    ctx.save();
    ctx.translate(x, y);
    ctx.rotate((w.rotate * Math.PI) / 180);

    const tw = ctx.measureText(w.text).width;
    const bw = tw + 2 * padX, bh = fontSize + 2 * padY;

    ctx.fillStyle = '#fff';
    ctx.shadowColor = 'rgba(0,0,0,.5)';
    ctx.shadowOffsetX = 0.1 * fontSize * dpr;
    ctx.shadowOffsetY = 0.15 * fontSize * dpr;
    ctx.fillRect(-bw/2, -bh/2, bw, bh);

    ctx.shadowColor = 'transparent';
    ctx.strokeStyle = '#ededed';
    ctx.lineWidth = 0.1 * fontSize;
    ctx.strokeRect(-bw/2, -bh/2, bw, bh);

    ctx.fillStyle = '#000';
    ctx.fillText(w.text, 0, 0);
    ctx.restore();
  }

  if (onCapture && !hasCapturedRef.current) {
    hasCapturedRef.current = true;
    onCapture(canvas.toDataURL('image/png'));
  }
}

// draw bg -> noise -> words in order
if (webcamVideo && webcamVideo.readyState >= 2 && webcamVideo.videoWidth && webcamVideo.videoHeight) {
  drawCoverImage(webcamVideo, visualMode === 'front-camera');
  drawNoise();
} else if ((visualMode === 'front-camera' || visualMode === 'back-camera') && webcamVideo) {
  setTimeout(() => {/* retry */}, 100);
} else if (backgroundImage) {
  const bg = new Image();
  bg.onload = () => { drawCoverImage(bg); drawNoise(); };
  bg.crossOrigin = 'anonymous';
  bg.src = backgroundImage;
} else {
  ctx.fillStyle = '#f5f5f5';
  ctx.fillRect(0, 0, width, height);
  drawNoise();
}

next steps

real-time collaborative canvas, drawing inspiration from Spencer Chang's playhtml

thanks for reading :-)
